Investors Guides

The Map below shows the different blocks by color as follows:

1. White: Open blocks on offer
2. Green: producing blocks
3. Yellow: Licensed Exploration blocks

Available data:

Most of these blocks contain only gravity and magnetic data, seismic and drilling are scarce.

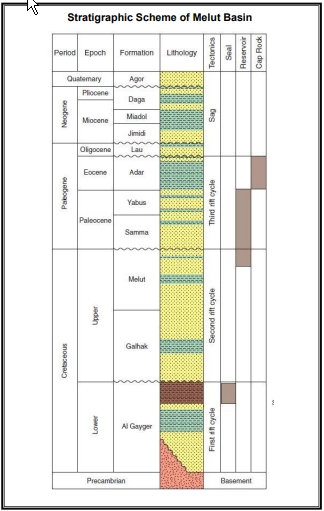

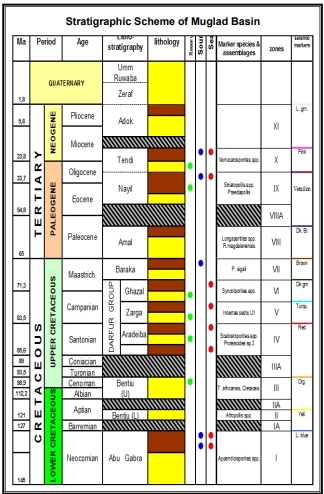

The two major basins, Muglad and Melut are formed by rifting cycles and seems to truncate along the Central African Sheer Zone (CASZ) as shown in the map below.

A couple of blocks extend northwards from Anza Basin which has a proven petroleum system with discoveries in Kenya.

All basins of South Sudan exhibit extension asymmetric and symmetric rift basins containing thick continental clastic sediments and minor volcanics. Reservoir, source and seal beds of late Cretaceous and Tertiary are preserved in these basins. The Location of the offered blocks within the Muglad basin and adjacent to a valid petroleum system show their high potentiality. Favourable trend for HC accumulations in the surrounding concession area can be extended as a proven trend to the frontier blocks areas.

Further details are shown through access link for interested investor. The access link can be obtained after completing the process of “Data Viewing” or “Data Acquisition” on the following categories:

1. 1. Basin Report, for prospectivity.
2. 2. The Individual Block Report.
3. 3. The Petroleum Act -2012, EPSA Model and various regulations.
4. 4. The Country Report for South Sudan General information.

For Technical Questions and clarifications please Contact:
